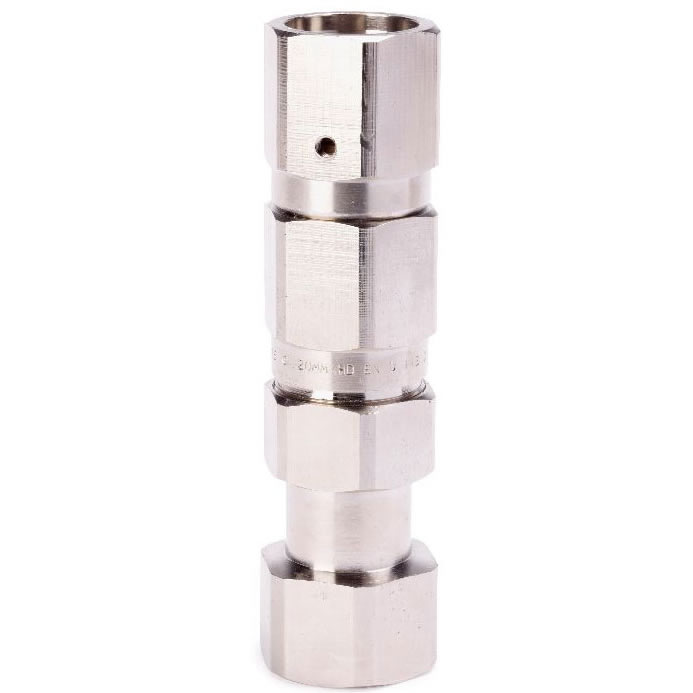

Barrier Connectors for Braided and Liquid tight Conduit – FHC Explosion Proof Connectors
FHC Explosion Proof Connectors
The FHC series barrier connectors can be used in flameproof (Ex d) and dust-excluding ignition-proof (DIP) applications.
The connectors are designed for use with Flexible PVC Braided Conduit complying with AS/NZS 2053.4.
The connector kit includes an easy to use two part epoxy putty which is packed around the cables.
Assembling the connector on the conduit, packing the connector and installing the system is a simple operation.
Both male and female connection threads are available.
| Part No | I.D. | Thread Type | Thread Size | Use with Conduit |
| FHC-2003 | 13.5mm | Male | 20mm | FC-16 |
| FHC-2503 | 18mm | Male | 25mm | FC-19 |
| FHC-075 | 13.5mm | Female | 3/4″ WP | FC-16 |
| FHC-100 | 18mm | Female | 1″ WP | FC-19 |
