Material
- Connector body – Galvanized die casting malleable iron
- Hexagon pressure nut – Galvanized die casting malleable iron
- Sealing ring – Nylon 66
- Ferrule – Galvanized steel

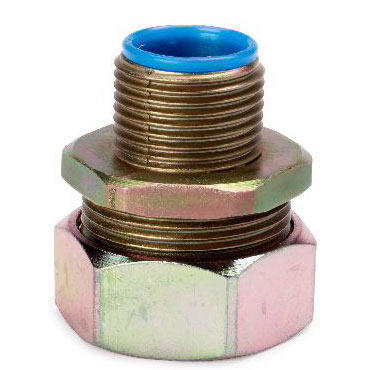

Straight Connector Malleable Iron
Model: LTCM-*
Description: Straight Conduit Fitting Malleable Iron
Certificate of Conformity: ANZEx 14.3013 IECEx TSA 11.0026
Structure: Connector body with hexagonal wrench surface, thread ISO metric in accordance with IEC 60079,hexagonal nut, sealing ring and ferrule
Features
- Simple, one piece installation provides a quick and reliable liquid-tight seal
- IP66 rating
- High mechanical strength
- Liquid tight and dustproof
- Vibration and tension proof
- Inherently low fire hazard
- Covering of the conduit ends

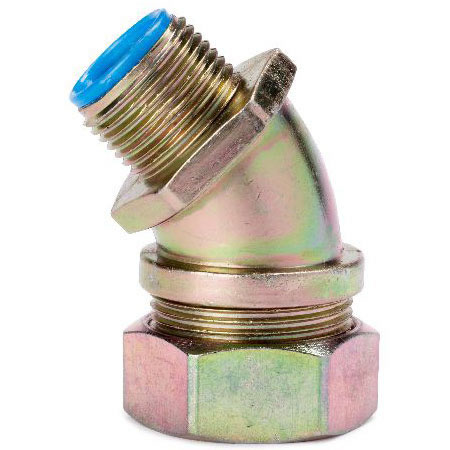

- Available in straight, 45o and 90o bodies
- Available in ISO Metric threads
Applications
- General industrial and commercial electrical wiring protection
- Machining centres and robotics
- Any narrow space in static applications
- General wiring for OEM applications
- Low fire hazard applications
- Under floor wiring in office buildings
Special Applications:
According to customer’s samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.
Specifications
| Part No | ISO Thread (mm) | Conduit Size (mm) |
| LTCM-09 | 16 | 16 |
| LTCM-10 | 20 | 16 |
| LTCM-11 | 20 | 20 |
| LTCM-12 | 25 | 25 |
| LTCM-13 | 32 | 32 |
| LTCM-14 | 40 | 40 |
| LTCM-15 | 50 | 50 |
| LTCM-16 | 63 | 63 |
Suitable flexible conduits
- VJ type of vacuum jacketed flexible conduit
- LT type of liquid-tight flexible conduit
- SL type of flexible metallic conduit
- LTX type of extreme liquid-tight flexible conduit
