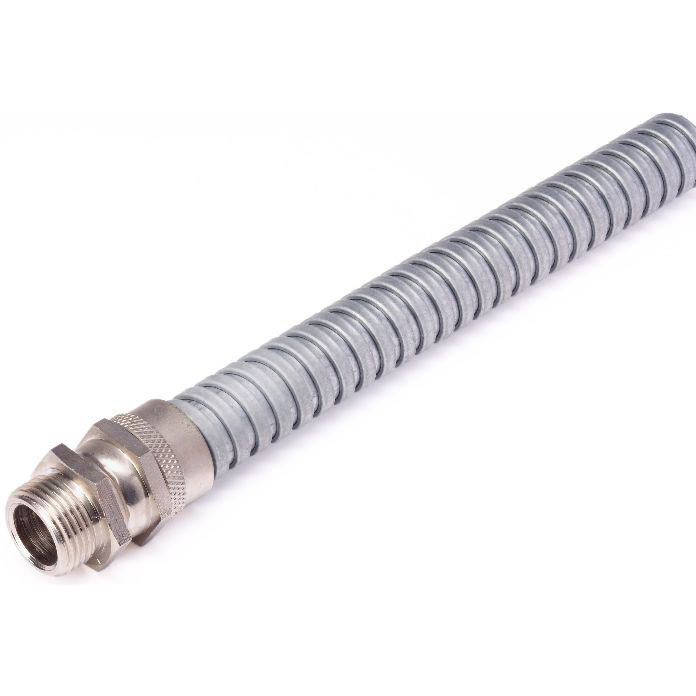

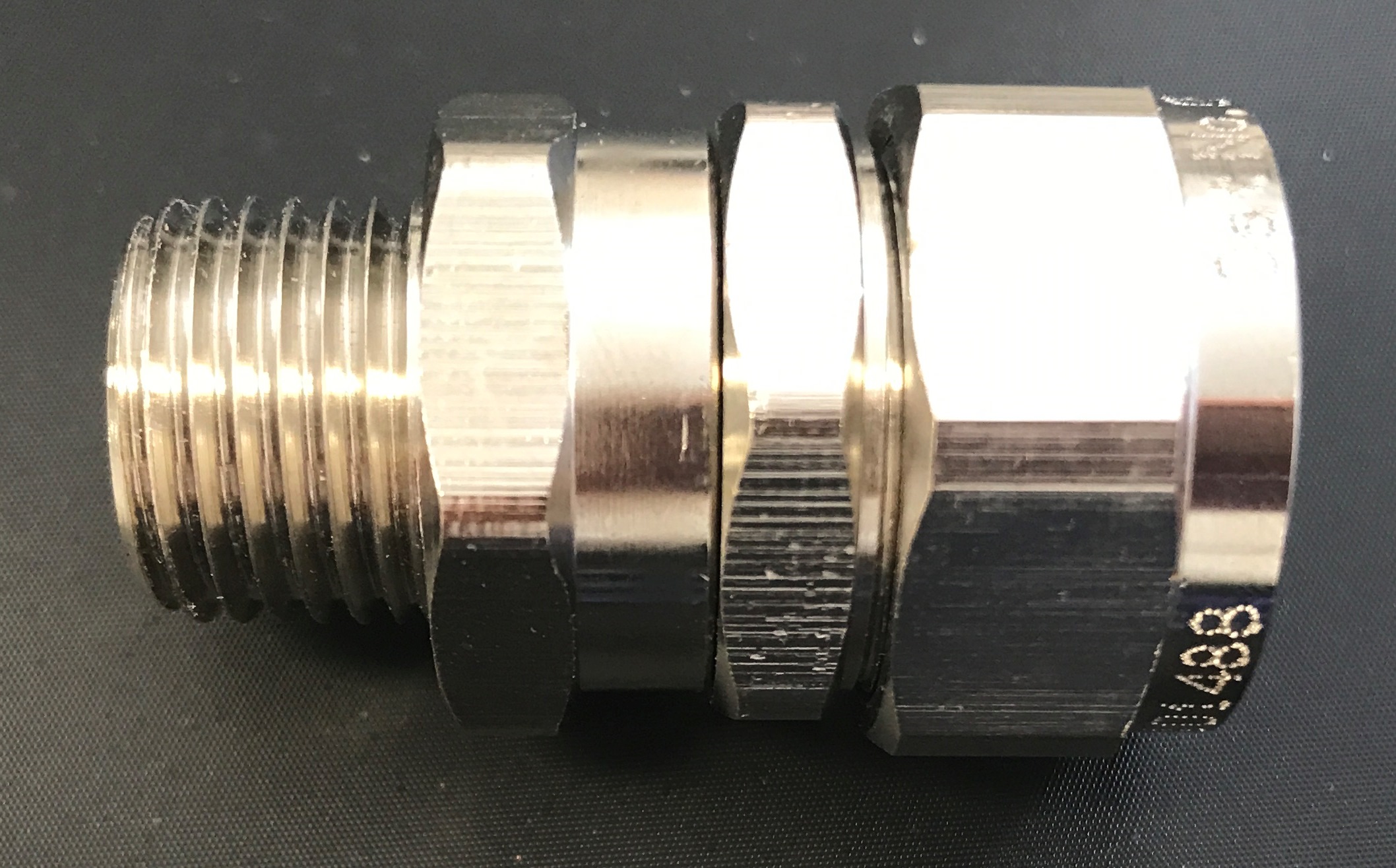

VJ Type Brass Swivel & Fixed Connectors

Material

Connector body – Nickel Plated Brass
Shell cover – Nickel Plated Brass

Features

Simple, and easy installation
IP54 rating
High mechanical strength
Vibration and tension proof
Inherently low fire hazard
Covering of the conduit ends
Available in ISO Metric threads

Applications

General industrial and commercial electrical wiring protection
Any narrow space in static applications
General wiring for OEM applications
Low fire hazard applications

Special Applications:
According to customer’s samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.

Specifications

VJC Conduit Non Liquid Tight Connectors

Conduit Size	Thread Size	Straight Brass Swivel	Straight Brass Fixed
16mm	16mm	VJCM-B09	VJCM-09F
16mm	20mm	VJCM-B10	VJCM-10F
20mm	20mm	VJCM-B11	VJCM-11F
25mm	25mm	VJCM-B12	VJCM-12F
32mm	32mm	VJCM-B13	VJCM-13F
40mm	40mm	VJCM-B14	VJCM-14F
50mm	50mm	VJCM-B15	VJCM-15F
63mm	63mm	VJCM-B16	VJCM-16F

For application where liquid tight is required the following parts are available:

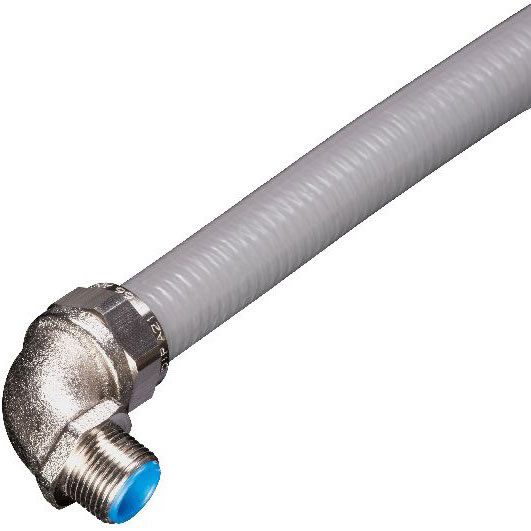

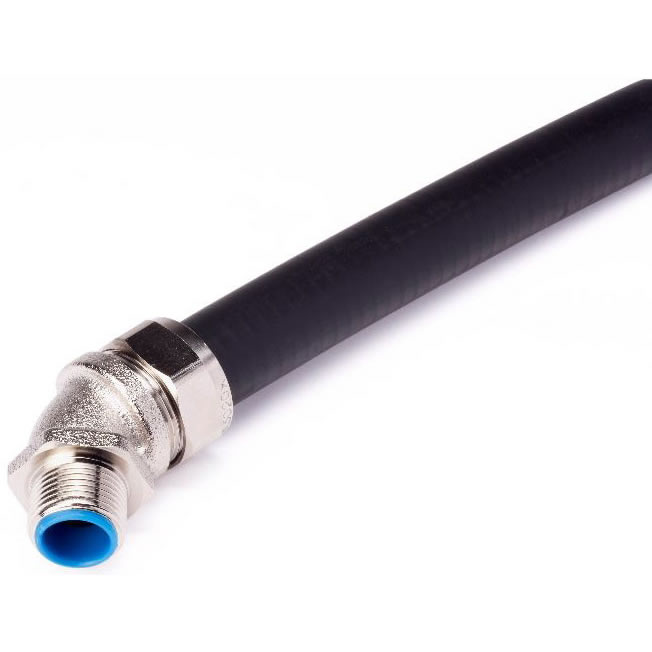

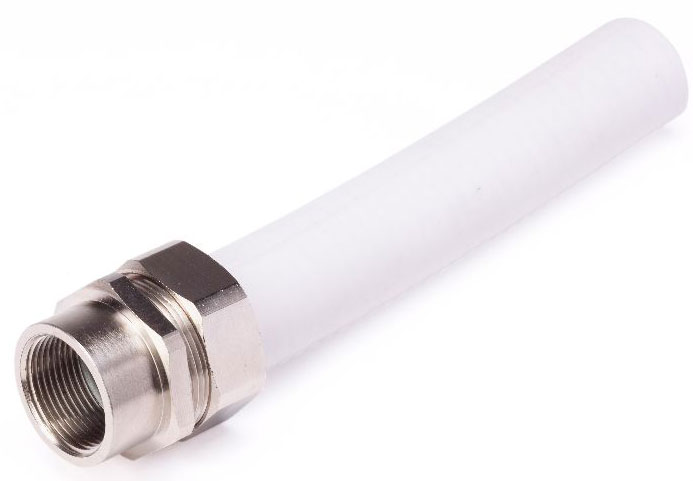

Conduit Size	Thread Size	Straight	90 Degree	45 Degree	Female
16mm	16mm	VJCML-B09	VJCML-B209	VJCML-B309	VJCML-B609
16mm	20mm	VJCML-B10	VJCML-B20	VJCML-B30	VJCML-B60
20mm	20mm	VJCML-B11	VJCML-B21	VJCML-B31	VJCML-B61
25mm	25mm	VJCML-B12	VJCML-B22	VJCML-B32	VJCML-B62
32mm	32mm	VJCML-B13	VJCML-B23	VJCML-B33	VJCML-B63
40mm	40mm	VJCML-B14	VJCML-B24	VJCML-B34	VJCML-B64
50mm	50mm	VJCML-B15	VJCML-B25	VJCML-B35	VJCML-B65
63mm	63mm	VJCML-B16	VJCML-B26	VJCML-B36
